Ford Truck, Iveco-Fiat EuroCargo K24 Turbo 53249886405 turbo Actuator valve wastegate

Name: Ford Truck, Iveco-Fiat EuroCargo K24 Turbo 53249886405 turbo Actuator valve wastegate
Brand: COSTEL
SKU: Turbo Actuators
Rating: 4.6 (159 reviews)

Large Image : Ford Truck, Iveco-Fiat EuroCargo K24 Turbo 53249886405 turbo Actuator valve wastegate

Product Details:

Place of Origin:	China Wuxi
Brand Name:	COSTEL
Model Number:	Turbo Actuators

Payment & Shipping Terms:

Minimum Order Quantity:	1 PC
Price:	Negotiation
Packaging Details:	Neutral Packing
Delivery Time:	3-7 working days after received your payment
Payment Terms:	T/T ,western Union, Paypal ,LC
Supply Ability:	10000pcs per month

Contact Now

Detailed Product Description

Type:

Full Kit

Warranty:

One Year

Quality:

OEM Quality

Apply:

Repair Engine Turbo

Highlight:

turbo wastegate actuator

turbocharger wastegate actuator

Ford Truck, Iveco-Fiat EuroCargo K24 Turbo 53249886405 turbo Actuator valve wastegate

Part Number	53249886405
Previous Part Number	5324-988-6405, 5324 988 6405
OE number	4848601, 99446021, 2992392
Description	Truck Ford EuroCargo, Iveco Eurocargo
Manufacturer Part Number	53249706405, 5324-970-6405, 5324 970 6405
CHRA	53247100018 (5324-710-0018)
Turbo Model	K24-2464GGA5.51GBATD
Engine	8040.45.4300
Displacement	3.91L, 3900 ccm
KW	100/136 HP
RPM Max	2700
Fuel	Diesel
Angle α (compressor housing)	312�
Angle β (turbine housing)	240�
Bearing Housing	53241500019
Turbine Wheel	53241205001/53241202109 (53241202103, 53241202102) (Ind. 50. mm, Exd. 59 mm, 12 Blades)
Comp. Wheel	53241232012/53241232017/53241232014/53241232000 (Ind. 36.2 mm, Exd. 60.5 mm, 6+6 Blades, Flat back) (1301024400)
Back plate	53241515703 (409629-0006)
Heat shield Number	53241652003 (409627-0000)
Repair Kit	53247110027/53277110020 (1301027751)
Turbine Housing	53241007027/53241017028
Compressor Cover	53241015206
Turbine Housing AR	5
Actuator Waste gate valve	58061100338
settings Waste gate (pressure)	1.05 bar
settings Waste gate (lift shaft)	3.20 mm
NOTE	Intercooler
Replaces	465379-0003
Manufacturer	Borg Warner - 3K - Schwitzer

Appliions

1995-05 Ford Truck, Iveco-Fiat EuroCargo 75.14 with 8040.45.4300 Engine

2002-09 Iveco-Fiat EuroCargo with 8040.45.4300 Engine

Pictures:

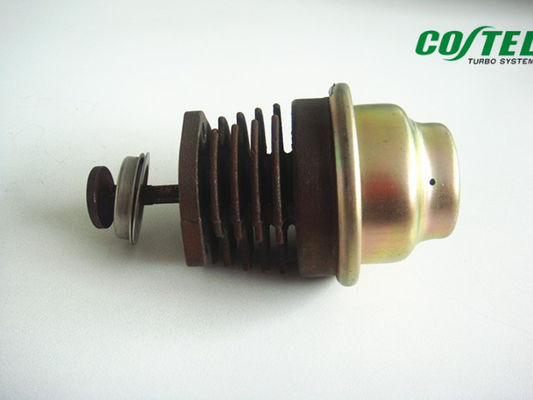

Ford Truck, Iveco-Fiat EuroCargo K24 Turbo 53249886405 turbo Actuator valve wastegate 0

Contact:

Email/Skype:costelturbo@outlook.com

What items can supply:
A, currently supplies over 220 different actuators, which includes Pressure acutators, Pneumatic actuators, Vacuum actuators with position sensors, and so on.
B, The replacement actuators cover many popular originally manufactured turbos.
C, Electrical Actuators Parts, including Motors, Worm Gear, Loing Lug, Gearboxes etc.
D, Permeability test 100%.
E, Spring liner data test 100%.
