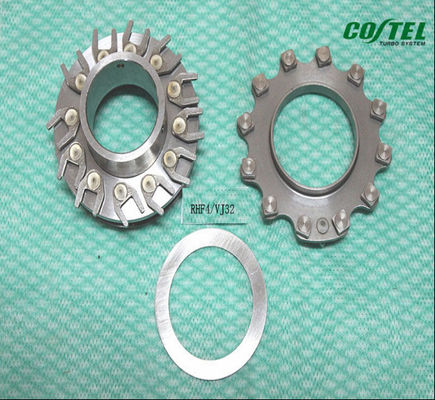

IHI Turbo Nozzle ring Mazda 6, MPV CRTD RHF4V Turbo VIA10019 VJ32
| Part Number |
VIA10019 |
| Previous versions |
VAA10019, VBA10019, VCA10019, VDA10019, VHA10019, VIA10019 |
| OE number |
RF5C13700, RF5C.13.700 |
| V-Spec. |
VJ32 |
| Description |
Mazda 6 CiTD |
| CHRA |
IHI710VJ32 |
| Turbo Model |
RHF4V-68006P15NR5BRL366CE |
| Engine Model |
J56 CRTD, LW |
| Capacity |
2.0L, Diesel, 2000 ccm |
| Engine Code |
RF |
| Displacement |
2.5L, 2500 ccm, 4 Cyl. |
| Fuel |
Diesel |
| Angle α (compressor housing) |
245� |
| Angle β (turbine housing) |
358� |
| Repair Kit |
NH459801 |
| Turbine Housing AR |
15 |
| Gasket (turbine inlet) |
210877 |
| Gasket (turbine outlet) |
210689 |
| Gasket (oil outlet) |
210553 |
| Manufacturer |
IHI |
Appliions
2002- Mazda 6, MPV II DI 2.0L Diesel 143HP
Pictures:
Contact:
Email/Skype:costelturbo@outlook.com
What Nozzle Ring have:
A, now has more than 150 different Nozzle Rings available, which are applied to passenger cars, light and medium commercial vehicles.
B,The replacement nozzle rings cover many popular originally manufactured turbos
C, OE Quality material is used for the nozzle ring vanes.
D, All produced with solid vanes for improved strength
Products coverage:
Garrett (GTC12,GTB14,GT VNT15-25V,GT37V etc),
KKK (BV30,BV35,BV39,BV43,BV50,R2S,B2V etc),
Schwitzer (S1B/S100,S2B/S200,S300,S400 etc),
MHI (TD03VG,TF035,TF035VGT,TD04,TD05 etc),
Holset (HE341V,HE351V, HE431V,HE551/HY55V HY40V etc),
IHI (RHF/RHB3,RHF/RHB4,RHF5/RHB5/RHV5,RHG6,RHG8Vetc),
TOYOTA(CT16V CT26V VNT, etc)
