Balanced: | Turbo Technics VSR Or Schenck Machine | Warranty: | One Year |
---|---|---|---|
Quality: | OEM Quality | Apply: | Repair Engine Turbo |
Highlight: | turbo charged vehicles,turbo auto garrett |

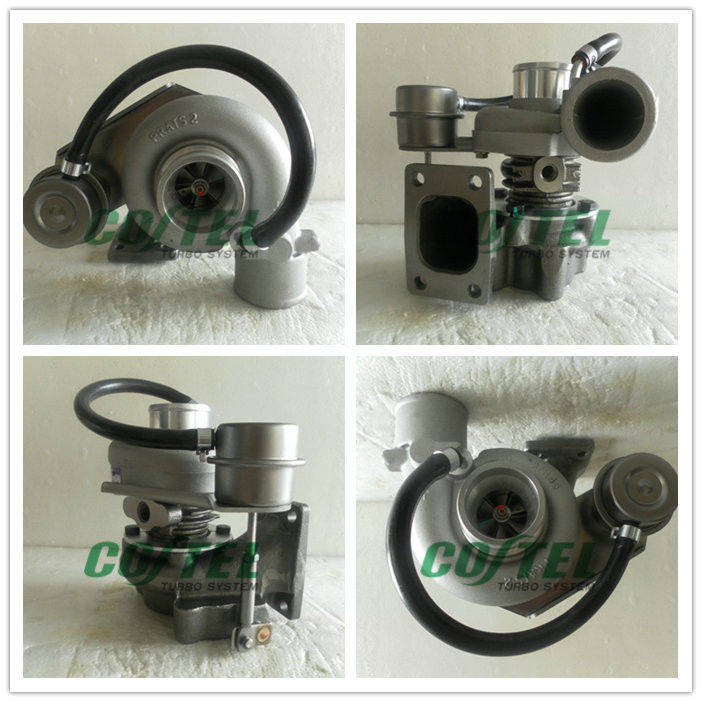

Fiat Punto TDS Uno TD Commercial Strada with M.708. HT17.2D Engine TB0227 Turbo 466856 466856-5003S 46424102
Specifiions:
Part Number | 466856-5003S |
Previous Version | 466856-0002, 466856-0004, 466856-0005 |
OE number | 46424102, 46234349, 71723573, 46558724, 71793633, 46408952 |
Year | 1994-03 |
Description | Commercial, Cars |
Manufacturer Part Number | 54359710014, 54359700014 |
CHRA | 443854-0119 (43854-5119S) |
Turbo Model | TB0227 |
Engine | M.708.HT.17.D, 176 A3.000, 176 A5.000, M.708.HT.17.D, 176B7.000, 146 D7.000 |
Engine Manufacturer | Fiat |
Displacement | 1.7L, 1700 ccm, 4 Cylinders |
KW/RPM | 72/4600 |
Fuel | Diesel |
Angle α (compressor housing) | 207� |
Angle β (turbine housing) | 268� |
Bearing Housing | 435350-0003 (Oil Cooled) NEW IN STOCK |
Turbine Wheel | 435243-0002/435259-0001 (435243-0001/435243-0004/435243-0005/435259-0001/435737-0001/435737-0006) (Ind. 47. mm, Exd. 35.25 mm, Trm 56, 11 Blades) (1100020435) |
Comp. Wheel | 410450-0012 (Ind. 48. mm, Exd. 32 mm, Trm 45, 12 Blades) NEW IN STOCK |
Back plate | 430735-0001/435350-0003 NEW IN STOCK |
Heat shield Number | 445118-0001 NEW IN STOCK |
Repair Kit | 709143-0001 (1100025761) |
Turbine Housing | 430609-0090 NEW IN STOCK |
Compressor Cover | 409589-0348 NEW IN STOCK |
Housing AR | 0.35 |
Actuator | 430819-0061 NEW IN STOCK |
Settings waste gate (pressure) | 0.780-0.850/0.880-1.000 bar |
Settings Waste gate (lift shaft) | 1.00/4.00 mm |
Gasket (turbine inlet) | 210218 |
Gasket (turbine outlet) | 210802 |
Manufacturer | Honeywell-Garrett |
1994-03 Fiat Commercial Strada with M.708. HT17.2D Engine
1994-03 Fiat Punto TDS with M.708.HT17.2D Engine
1988-94 Fiat Uno TD with M.709.BT.13.0.D Engine
Pictures:
Contact:
Email/Skype:costelturbo@outlook.com
Shipping:
Depending on various circumstances, three different delivery methods have been taken:
1 By sea. 2 By air cargo. 3 By express service.
Delivery term
Our extensive stock of turbochargers allows us to offer 3-7 working day delivery service ensuring that you and your customer wait no longer than is necessary.
50-150 pcs--15-20 days, 150-300 pcs--25 days, over 300 pcs -- 30 days.
COSTEL Complete Turbo
A.our products have 12 months warranty.
B.Product are manufactured to OE standards of quality
C.All wheels are processed on the Schenck automatic balancing centre with air bearings to achieve lowest residual balance.
D.Cartridges are assemblied by automatic line, and are balanced with Turbo Technics VSR or Schenck .
E.All VNT turbochargers are tested on the G3 VNT Flow Bench.
F.All turbochargers are supplied with gasket kits.
PRODUCTS coverage
